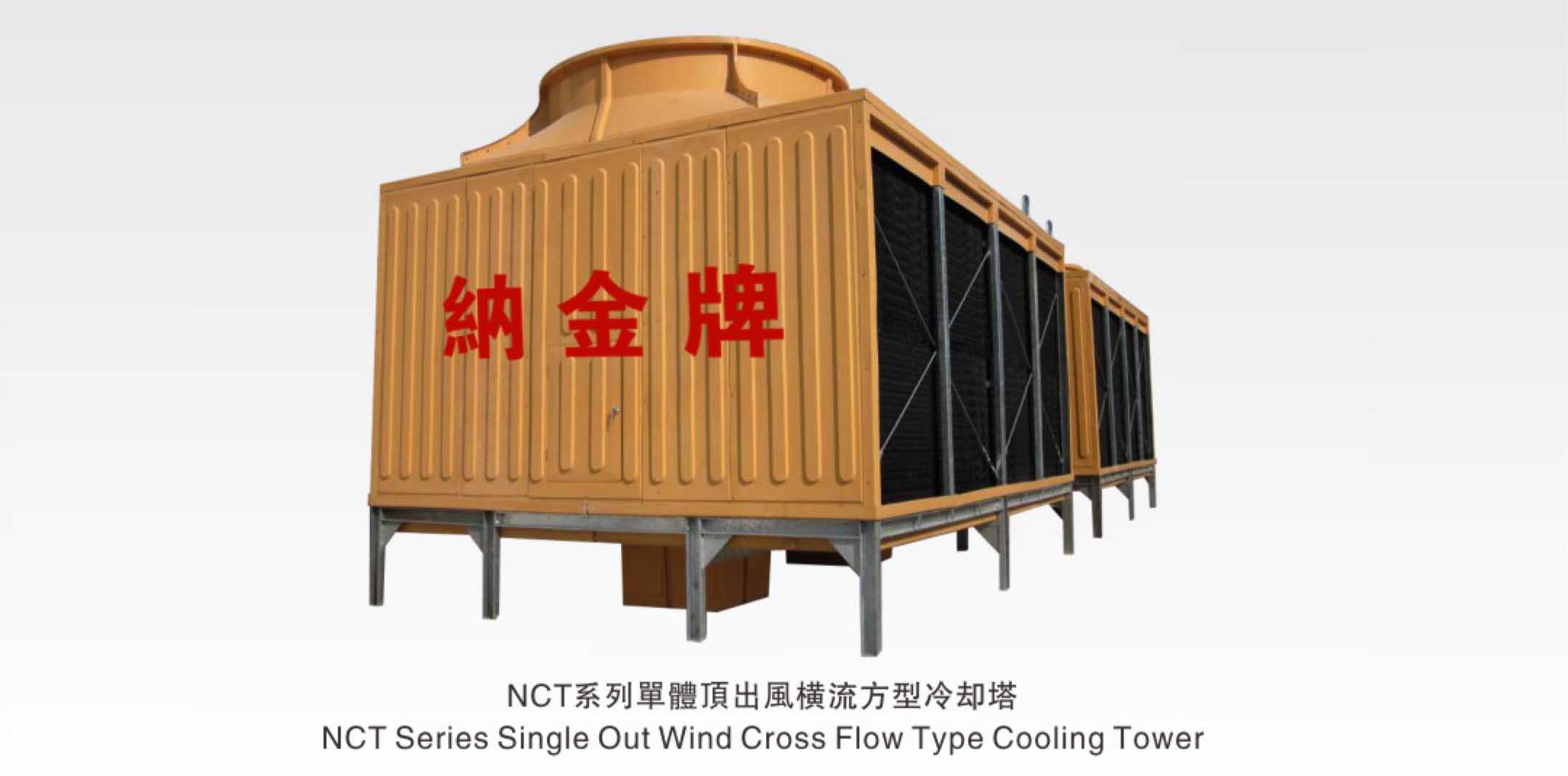

納金方形冷卻塔相關參數：
型號 | 流量 | 風量 | 外形尺寸(m) | 風機直徑(m) | 電機(KW) | 管徑(cm) | 重量(T) | 噪聲 | |||||||
M³/h | 萬M³/h | 長 | 寬 | 高 | 進水*數量 | 出水 | 溢水 | 補水 | 排水 | 凈重 | 運行重量 | ||||
80L/SA | 80 | 4.8 | 1.65 | 3.1 | 3.7 | 1.3 | 1.5KW-8P | 10*2 | 12.5 | 4 | 2.5 | 4 | 0.65 | 1.83 | 51.8 |
100L/SA | 100 | 6 | 1.98 | 3.2 | 3.7 | 1.45 | 2.2KW-8P | 10*2 | 12.5 | 4 | 2.5 | 4 | 0.86 | 2.26 | |
125L/SA | 125 | 7.5 | 2.38 | 3.6 | 3.7 | 1.75 | 4KW-4P | 12.5*2 | 15 | 4 | 2.5 | 4 | 1.08 | 2.83 | 52.4 |
150L/SA | 150 | 9 | 2.58 | 3.8 | 3.7 | 2.13 | 5.5KW-4P | 12.5*2 | 15 | 4 | 2.5 | 4 | 1.18 | 3.55 | |
175L/SA | 175 | 10.5 | 2.86 | 4.2 | 3.7 | 2.13 | 5.5KW-4P | 12.5*2 | 20 | 4 | 4 | 4 | 1.3 | 3.81 | 54 |
200L/SA | 200 | 12 | 2.97 | 4.31 | 3.7 | 2.4 | 7.5KW-4P | 15*2 | 20 | 4 | 4 | 4 | 1.6 | 4.02 | |
225L/SA | 225 | 13.5 | 2.97 | 4.31 | 4.2 | 2.4 | 7.5KW-4P | 15*2 | 20 | 5 | 4 | 5 | 1.71 | 4.15 | 54.5 |
250L/SA | 250 | 15 | 2.97 | 5.08 | 4.2 | 2.4 | 7.5KW-4P | 15*2 | 20 | 5 | 4 | 5 | 2.38 | 5.28 | |
300L/SA | 300 | 18 | 3.25 | 5.55 | 4.3 | 2.85 | 7.5KW-6P | 20*2 | 25 | 5 | 5 | 5 | 2.58 | 5.65 | 57.8 |
350L/SA | 350 | 21 | 3.5 | 5.8 | 4.3 | 2.85 | 7.5KW-6P | 20*2 | 25 | 5 | 5 | 5 | 2.85 | 6.27 | |
400L/SA | 400 | 24 | 3.75 | 6.05 | 4.3 | 3.2 | 11KW-6P | 15*4 | 25 | 8 | 5 | 8 | 3.25 | 6.88 | 59.5 |
450L/SA | 450 | 27 | 4 | 6.3 | 4.3 | 3.2 | 11KW-6P | 15*4 | 25 | 8 | 5 | 8 | 3.66 | 7.15 | |
500L/SA | 500 | 30 | 4 | 6.3 | 4.9 | 3.2 | 11KW-6P | 20*4 | 30 | 8 | 5 | 8 | 4.26 | 8.5 | 60 |
600L/SA | 600 | 36 | 4.5 | 6.8 | 5.2 | 3.35 | 11KW-6P | 20*4 | 30 | 10 | 5 | 10 | 4.68 | 9.36 | |
700L/SA | 700 | 42 | 4.5 | 6.8 | 5.8 | 3.7 | 15KW-6P | 20*4 | 35 | 10 | 5 | 10 | 4.88 | 10.25 | 62 |
800L/SA | 800 | 48 | 5 | 7.3 | 5.8 | 4.05 | 15KW-6P | 20*4 | 35 | 10 | 5 | 10 | 5.1 | 12.3 | |
900L/SA | 900 | 54 | 5.5 | 7.8 | 5.8 | 4.25 | 18.5KW-6P | 25*4 | 35 | 10 | 6 | 10 | 6.88 | 14.56 | 65.5 |
1000L/SA | 1000 | 60 | 6 | 8.3 | 5.8 | 4.55 | 18.5KW-6P | 25*4 | 35 | 10 | 6 | 10 | 7.66 | 16.3 | |
